Refractory is the cornerstone of flue systems.
When Camini Wierer S.p.A. began its exciting adventure in the world of flue systems in 1970, refractory chimneys and flues dominated the market.

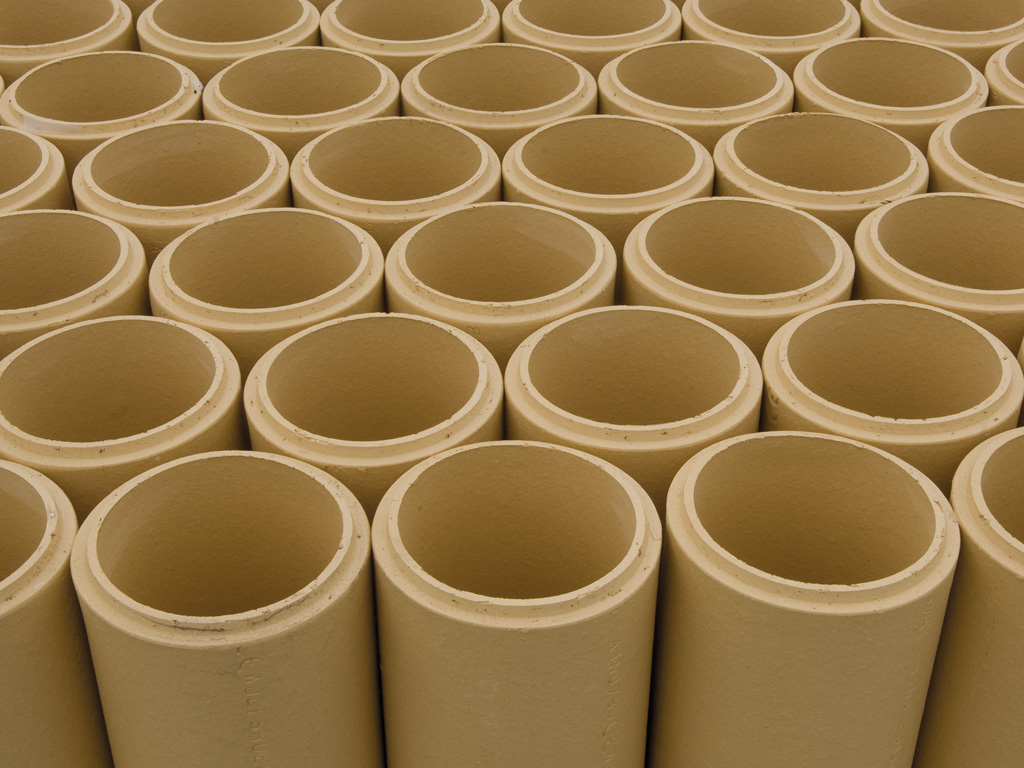

Refractory materials are the traditional materials and emblem of reliability. CW ECO is the combustion smoke exhaust flue, type ECO (CWE), made of modular refractory circular section elements with CE markings in accordance with EN 1457 standards.
Modular elements are suited to work in the following conditions:
Working temperature
Working temperature not over 600°C.
Pressure resistance
Operates with negative pressure (natural draught).
Condensation resistance
Dry operations.
Fuel
Operates with gas, liquid and solid fuels.
Installation
Installed in a non-combustible flue casing, grade "0" (fire reaction).
Diameters (mm)
120 - 140 - 160 - 180 - 200 - 250 - 300 - 350 - 400

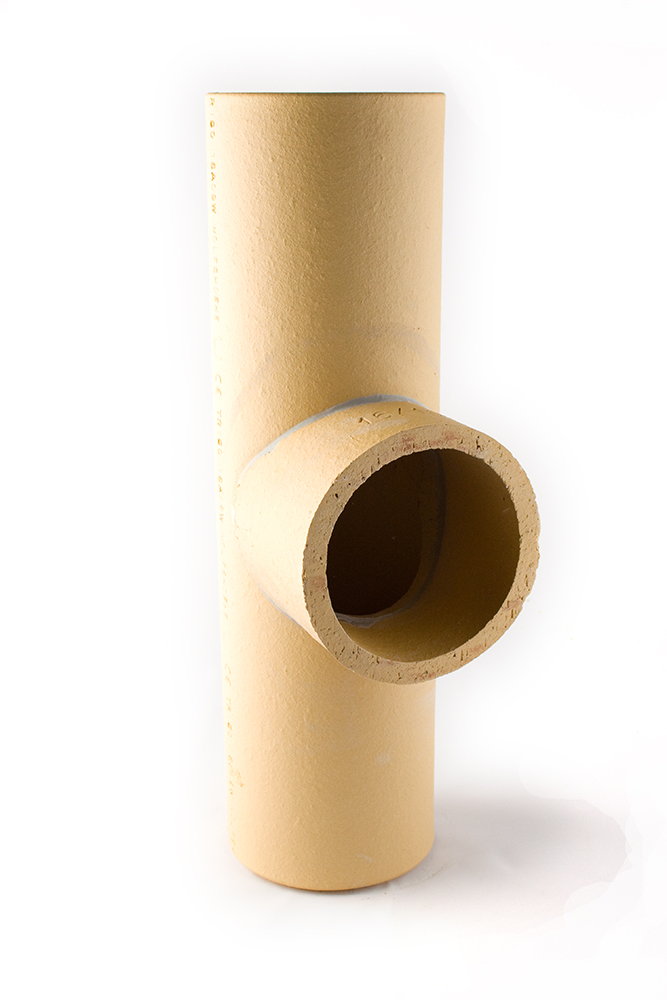

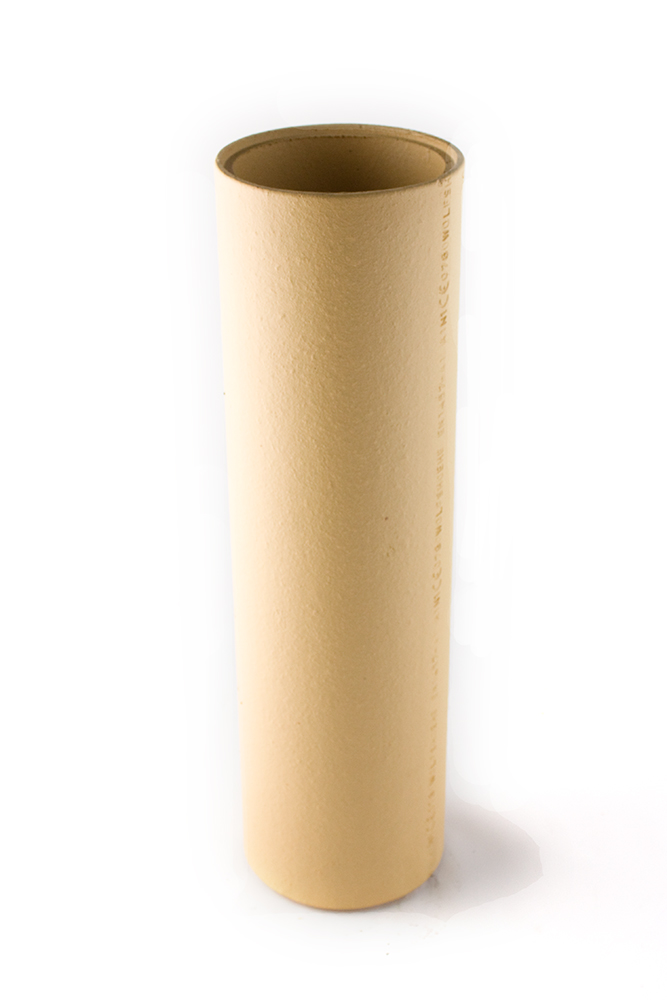

1- Combustion smoke exhaust flue, type ECO (CWE), made up of modular refractory circular section elements with CE markings in accordance with EN 1457 standards.
2- Connection joint sealed with specific acid resistant cement type NISOTT 2010, which ensures smoke and condensation seal and high mechanical resistance.
